Log Grapple Loader With Crane

Log Grapple Loader With Crane

Remolque de troncos de 14t de rotacion hidraulica Grua telescopica de 7,8m remolque de grua de madera pesada forestal, gran capacidad de carga

Hydraulic rotating 14t log trailer 7.8m telescopic crane forestry heavy timber crane trailer with large loading capacity is an attachment that allows you to grab tree trunks,branches, wood waste and transport them both lengthwise and crosswise. This makes it possible to pass through narrow places also with long logs and enables loading on trailer or on a pile in any direction. Timber grab is available either with a hydraulic rotator or as freely rotating version. The grab with hydraulic rotator is equipped with an electric solenoid valve for selection between grab opening/closing and rotator.

The 360-degree boom type wood graber is mainly used for forestry machinery and wood handling. In the south, it is used for loading. logs and eucalyptus trees. According to customer needs to design products, according to the customer's tractor and other models to modify the wood grabber. The log wood cranes grasping machine produced by our company adopts high strength steel plate (crane big arm material) bending and welding forming, which has the advantages of light weight, small volume, flexible control, accurate grasp and so on.

Below are the standard types of timber crane with trailer, log crane and loader

3t trailer + 4.2m log crane for home use

It's more popular in the USA, CA country market, more convenient and easy operation and more popular in end users. one family can hold one set to ensure the work more efficiency. While the trailer can load 3t logs max. We believe it's enough for home using.Matched power station: LIFAN 15HP gasline

6t trailer + 4.7m crane for farm use

1. this type timber log crane is a bit longer, it has one telescopic boom to adapt various working status.Also it can load 580kgs wood, has more larger capacity than 4.2m.

2. Application: it's not only for forestry and farm but sugarcane.

3. Technology: the surface treatment is powder coating, looks more comfortable and bright, the most important is the anti-corrosion to ensure the long lifetime.

4.The trailer loading capacity is about 6t.

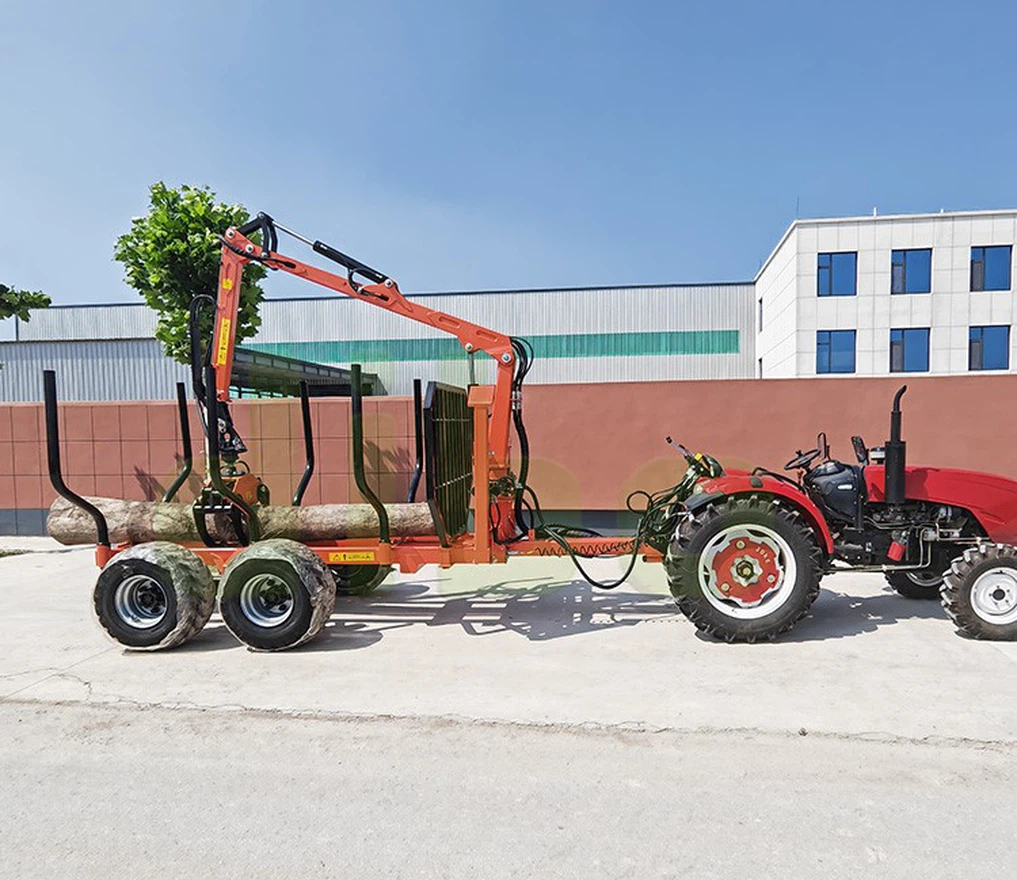

8t trailer + 5.5m crane for forestry industrial

1. the working efficiency is higher than 4.7m, the lifting capacity is about 960kgs at 4m length while it has one telescopic boom.

2. Application: it can be used for furniture manufacture and wood company. the length can be adjusted according to the use site.

3.Trailer capacity: about 8t, it has air brake to ensure the work well and it has signal light, more safe when works at night

10t trailer +6.5m crane for heavy forestry industrial

1. the 6.5m crane has 2 sections telescopic boom, more suitable for forest and woods. the lifting capacity is about 1750kgs at 4m

2. Recommended hydraulic fluid flow rate is 45-70L/min to make sure it works well.

3. Trailer: can load 12t logs and the effective use of space is about 2.6cbm. while the loading length is about 4300mm.

4. it has 2 sections telescopic boom and the lifting capacity is 2000kgs at 3m, also it has drive cab for worker.

5. It's more convenient and safe when the weather is bad such as rains etc

6. Diesel engine pump station, the power is about 40hp with 3 strokes.

Application for log grapple loader forestry timber trailer with crane

Application of timber log crane with trailer for forestry and farm with hydraulic system.

they're used for forestry industrial and help to the holder of forest to deliver woods and logs to their warehouse or home.

Product packaging for log grapple loader forestry timber trailer with crane

Gruas de troncos de madera para uso forestal y agricola, con remolque, con componentes del sistema hidraulico

1. para toda la caja, las gruas y remolques de troncos se cargaran en envases desnudos, mientras que las gruas se embalaran en marcos de acero para garantizar la seguridad durante el transporte prolongado.

2. el remolque se desmontara para cargar mas mercancias y las ruedas, vallas y tuberias se cargaran por separado en contenedores.

3. para las muestras, se empaquetaran en marcos de acero y contrachapado, y la maquina sera mas segura al transportarse de la fabrica a la direccion del cliente.

Company Profile for log grapple loader forestry timber trailer with crane

YANTAI DIBO MACHINERY EQUIPMENT CO., LTD With its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing. DIBO has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Forestry Machinery, Farm Tractor.Walking Tractor,Pellet machine, more than 50 serials and more than 150 models of various implements
