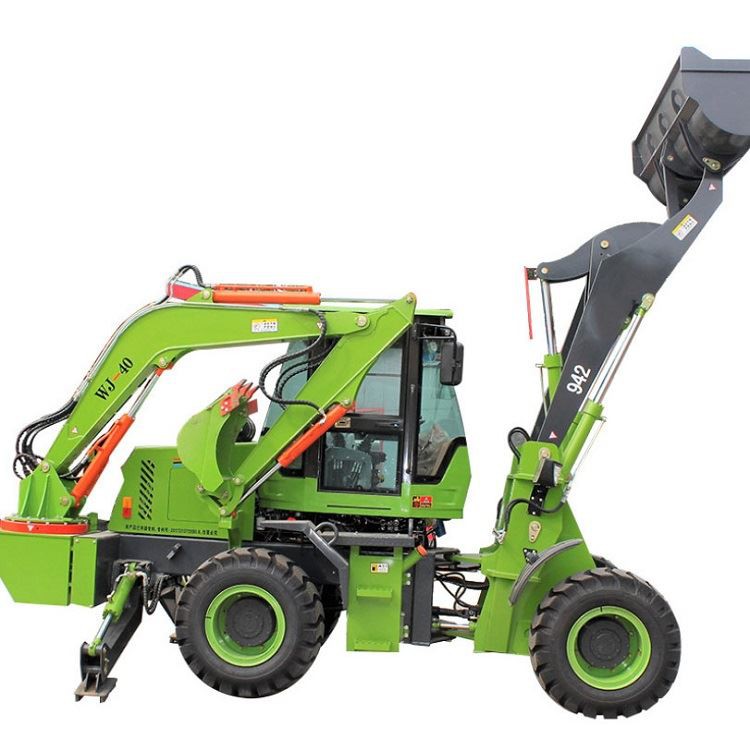

Multifunctional Front End Loader with Mini Excavator, Digger Combined Backhoe Loader

Multifunctional Front End Loader with Mini Excavator, Digger Combined Backhoe Loader

Will function of the hydraulic excavator digging and excavating loader loader loading function organic combination of implementation of the efficiency of one machine to two, therefore, commonly known as front end loader backhoe
Send Inquiry

Our company has developed the intensive growth development strategy of brand driving the company's Self Concrete Mixer, Mini Excavator 1 Ton, Portable Mortar Mixer and market development. We will continue to uphold the corporate belief of honesty, stability and professionalism, with advanced management mechanism, rich technical experience and innovative development concept. Under the efforts of all employees, our company has formed a set of relatively complete quality management system, and realized the one-stop service of production, supply and sales, which is deeply welcomed by the majority of users! We strive to solve the development difficulties of enterprises that are difficult to market, difficult to channel, and difficult to transform. We focus on end-user oriented, highlighting strategic users and direct market development to meet the differentiated needs of different users.


Introduction

Will function of the hydraulic excavator digging and excavating loader loader loading function organic combination of implementation of the efficiency of one machine to two, therefore, commonly known as front end loader backhoe, is a kind of the wider use of construction machinery, mainly used in municipal, water, pipeline gas, electric power, oil field, construction, forestry industries such as construction.



Parameter

Model

932-30

Engine Model

YUNNEI 4102

Rated Power

58KW

Rated Speed

2400r/min

Number of cylinders - inner diameter

4-102

Dimension

6500*1850*2700mm

Wheel Base

2240mm

Minimum ground clearance

250mm

The performance parameters

System Pressure

28Mpa

Weight

5000kg

Maximum speed

30km/h

Max Climb Capability

30°

Minimum turning radius

4000mm

Mining parameters

Maximum excavation depth

2000mm

Excavation unloading height

3100mm

Maximum excavation radius

3700mm

Bucket width

55mm

Bucket capacity

0.1m³

Maximum excavation height

4300mm

Maximum Digging Force

28KN

Rotary Angle of excavator

280°

Loading parameters

Maximum unloading height

3200mm

Maximum unloading distance

800mm

Bucket width

1800mm

Loading capacity

0.8M3

Maximum lift height for loading

4300mm

Maximum rising power

42KN

Shovel action time and

6.5s

Steering system type

Articulated full hydraulic steering

Steering Angle

33°

Tire

20.5-16

Front wheel air pressure

250-300kPa

Rear wheel air pressure

250-300kPa

Service brake

air top oil caliper disc brake

Parking brake

Air brake

Fuel tank/Hydraulic oil tank

63L/63L

Driving Type

4WD

EXW

13,000.0USD



Our company has the right to import and export, we hold high-quality Multifunctional Front End Loader with Mini Excavator, Digger Combined Backhoe Loader and quality services, sincerely hope to work together with domestic and foreign customers. We adhere to the business philosophy of 'details make classics and quality determines the future' paying attention to every detail to create perfect products. We require every employee to maintain a high sense of responsibility and act meticulously in accordance with the procedures and standards.
