We are committed to develop the most cost-effective Hydraulic Road Roller, Tractor Log Trailer, Single Drum Road Roller with superb performance so that provide the best product to our customer. Our company has a successful business model tested by the market and a management team with excellent execution. We have proposed a phased strategic shift from scale expansion to quality efficiency.
Parameter
The three main features of the largest backhoe loader are as follows: with the loading and mining functions. One machine with multiple functions, can be installed with lifting arm, fork, cleaner, crushing hammer, vibration rammer and other accessories. Fast mobile, equipped with a 4 - or 5-gear hydraulic transmission, the top speed is 40km/h. When the two busy construction, the operatorof largest backhoe loader only needs to turn the chair, can change the working end.
Parameter
Model | 942-45 |
Engine Model | YUNNEI 4102 pressure |
Rated Power | 58KW |
Rated Speed | 2400r/min |
Number of cylinders - inner diameter | 4-102 |
Dimension | 6900*1900*2800mm |
Wheel Base | 2550mm |
Minimum ground clearance | 250mm |
The performance parameters | |
System Pressure | 28Mpa |
Weight | 6500kg |
Maximum speed | 38km/h |
Max Climb Capability | 35° |
Minimum turning radius | 4250mm |
Mining parameters | |
Maximum excavation depth | 3000mm |
Excavation unloading height | 4100mm |
Maximum excavation radius | 4800mm |
Bucket width | 55mm |
Bucket capacity | 0.2m³ |
Maximum excavation height | 5600mm |
Maximum Digging Force | 30KN |
Rotary Angle of excavator | 280° |
Loading parameters | |
Maximum unloading height | 3500mm |
Maximum unloading distance | 900mm |
Bucket width | 20 00mm |
Loading capacity | 1M3 |
Maximum lift height for loading | 4700mm |
Maximum rising power | 90KN |
Shovel action time and | 6.8s |

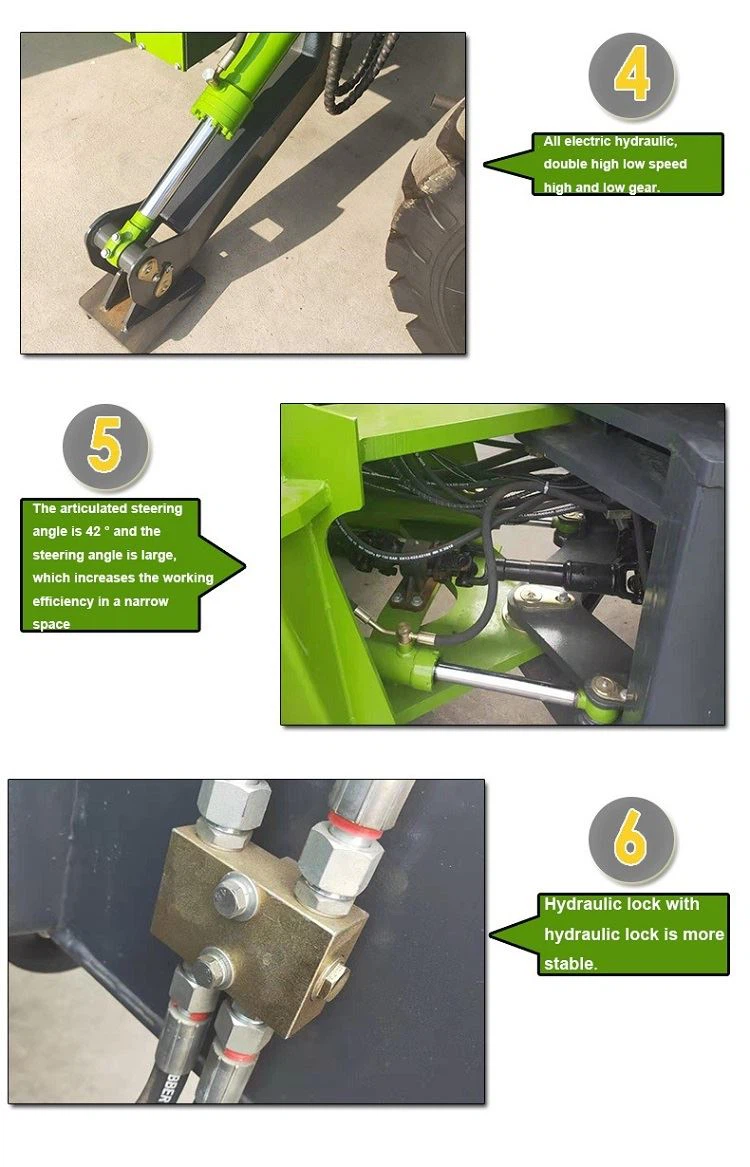

Steering system type | Articulated full hydraulic steering |
Steering Angle | 38° |
Tire | 16/70-20 |
Front wheel air pressure | 300-350kPa |
Rear wheel air pressure | 300-350kPa |
Service brake | air top oil caliper disc brake |
Parking brake | Air brake |
Fuel tank/Hydraulic oil tank | 70L/70L |
Driving Type | 4WD |
EXW | 16,500.00USD |
We know that only by strict selection of materials, strict process system and starting from the smallest details can we gradually improve the finished product rate of our Mini Loader Backhoe Loader 5 Ton Chinese Front Wheel Loader Skid Steer Loader. Quality and service is the key to the survival and development of the enterprise, and we strive for quality first in every product, understand the needs of each customer, and ensuring the quality of the product and post-service is the responsibility of each of our employees. Let's set up the cooperation right now!
