The continued growth in sales of our Self Loading Mobile Concrete Mixer, Grass Tiller, Mini Tiller Cultivator shows that we have excellent capabilities in developing new products and quickly responding to customer needs. We regard our employees as the most valuable asset of our company and are willing to absorb the best and most promising talents in the world, and hope that every employee can get good development in our company. We will continue to play a leading role, come to our mission and social responsibility, and continue to work hard. The spirit of enterprise is the common attitude, will condition and state of mind of all the employees of the enterprise, which resonate with each other. Through the implementation of HR strategy and the effective management of HR work, we fully mobilize the work motivation of the staff.
Production
1. Heavy Road Roller with authentic diesel engine, reasonable power matching, stable performance, reasonable system configuration, advanced performance.
2. Heavy Road Roller has the characteristics of large eccentric mass, large excitation force, large static line pressure and so on.The vibration bearing adopts the imported bearing, the working reliability is high.
3. Heavy Road Roller hydraulic system adopt plunger variable pump and piston motor closed hydraulic system, working pressure is big, how much is the small car roller, long service life and surface compaction effect is good, can easily achieve amplitude to the size of the switch, can adjust the vibration frequency within a certain range, in order to suit different working condition of compaction.
4. The driving system of heavy Road Roller is mainly composed of power shift box and drive axle, etc., which improves the reliability, good universality of parts and components, and is convenient for maintenance and repair.
Parameter
Model | YH-JS700C |
Type of engine | Water-cooled Diesel Engine |
Power | 8hp, 2300rpm |
Oil tank | 4.5L |
Fuel consumption rate | 280/kw·h |
Engine type | CHANGCHAI R180 |
Walking speed | 0-6km/h |
Grade ability | 30% |
Nominal amplitude | 0.5mm |
Vibration frequency | 70Hz |
Centrifugal force | 20KN |
Water tank | 16L |
Driving mode | Hydraulically driven, stepless variable speed |
Vibration | One key vibration - electromagnetic clutch，front wheel vibration |
The form of sprinkling | Artesian |
Wheel Width (Front, Rear) | 700mm(Vibration wheel width) |
Steel wheel diameter (front, rear) | 530mm(Diameter of vibration wheel) |
Total length (handrails laid flat) | 1750mm |
Total width | 860mm |
Total height (handrail standing) | 1350mm |
Package size | 1900*850*1300mm |
Weight | 720kg |
Details

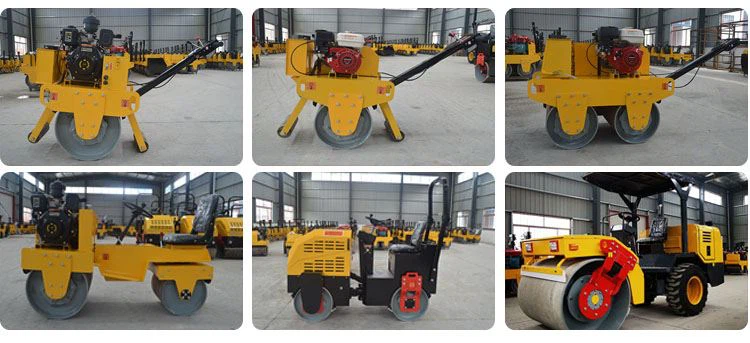

Many Types You Can Choose
Process
Application
As a fast growing company, we are providing our customers with safer and greener products with specialized manufacturing technology and high quality Hand Road Roller Compactor Diesel Asphalt Road Roller. We are looking forward to serving you. We will remember the mission and purpose of our company and insist on carrying forward the enterprise spirit of "passion, dream, pragmatism and diligence".
