Introduction

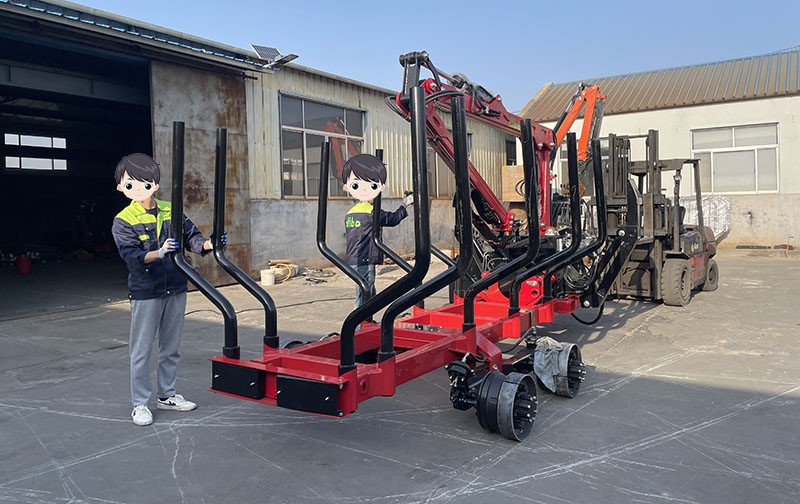

Our forestry trailer with crane has a total reach up to 4.2m,4.7m,5.5m,6.5m,7.0m,7.6m,7.8m.
Features:
1. Forestry trailer with crane lightweight, strong, highly maneuverable and designed to be very stable even when fully loaded.
2. Easy to operate by joystick.
3. forestry trailer with crane stabilizing legs fully hydraulic, convenient extend to create a wide base for better balance and safety.
4. Can be attached to ATV, truck, car or tractor.
5. High reliability ,Simple hydraulic and mechanical systems, easy to use and maintain.
6. High quality laser cut parts
Parameter
|
Model |
RM/TC420L |
|
Arm length(m) |
4.2 |
|
Rotary torque (KN.M) |
11 |
|
Rotation angle |
380°(left190°,right190°) |
|
Number of rotating cylinders(piece) |
4 |
|
Lifting force at 4 m(kg) |
580 |
|
Lifting force at full length (kg) |
500 |
|
Grab swing brake from side to side |
yes |
|
Grab swing brake back and forth |
yes |
|
Telescopic boom structure |
No |
|
Boom 360° rotary valve |
1pcs |
|
One-way throttle valve for 360° rotation of boom |
2pcs |
|
Balance valve |
1pcs |
|
Recommended hydraulic oil flow (L/min) |
30-45 |
|
Working pressure (mpa) |
20 |
|
Standard rotary motor |
GR-30(3T pin shaft type) |
|
The standard grab |
TG18(Maximum Opining1080) |
|
Total weight (no leg, valve block) KG |
520 kg |
|
Surface coating |
Spray plastic (big and small arms, column base, fixture teeth are red, others are black) |
|
Hydraulic tubing |
Inlet size 13, return size 16, with G1/2" quick coupling, main arm with built-in hose and external iron tubing at forearm |
