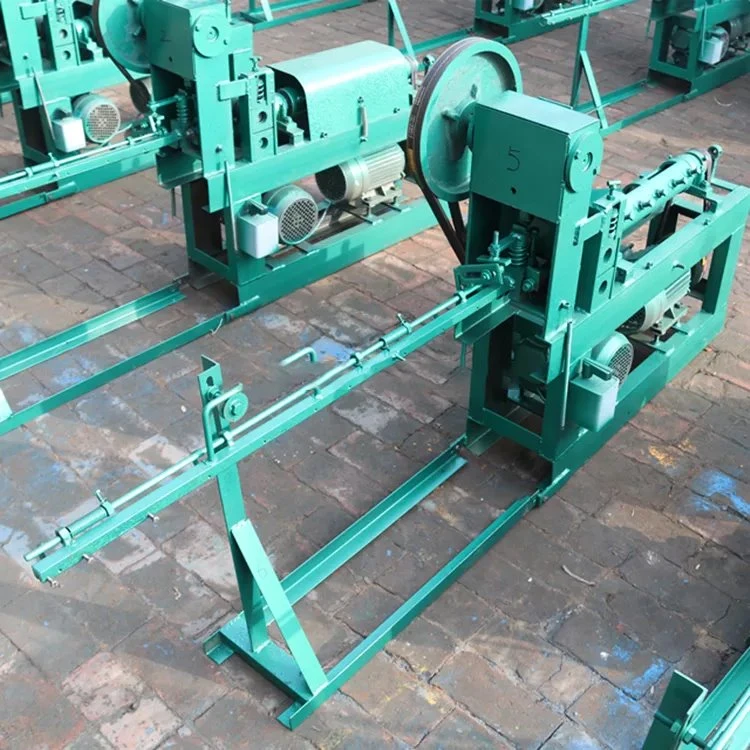

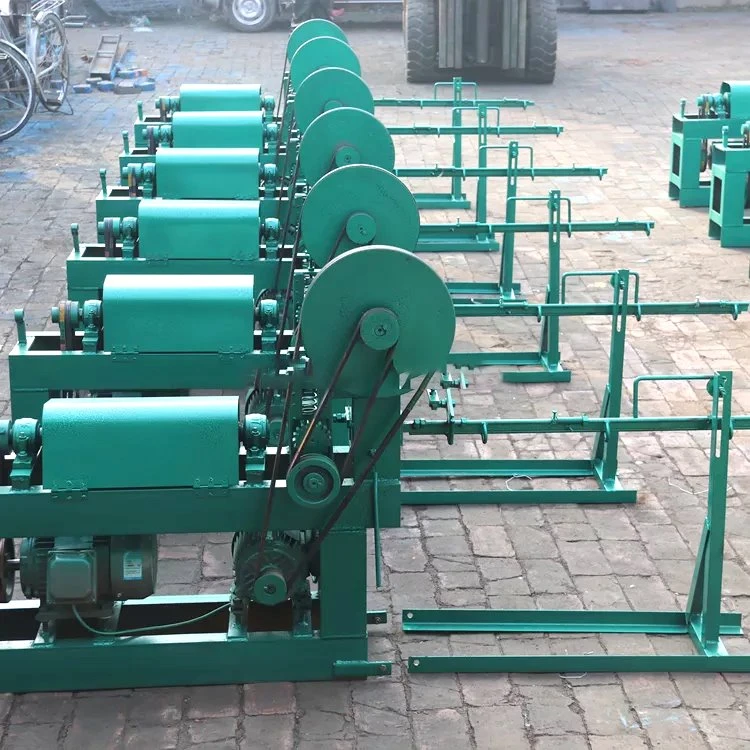

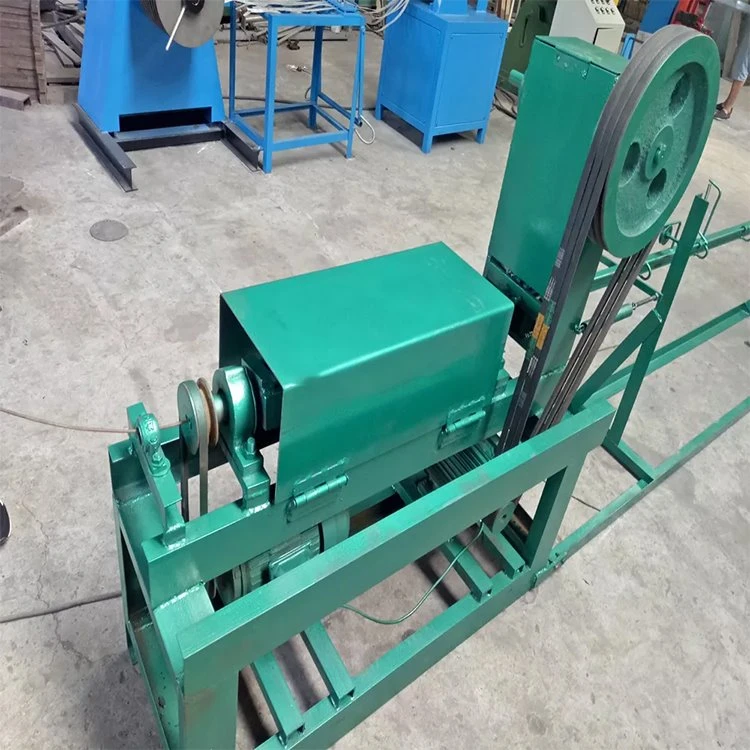

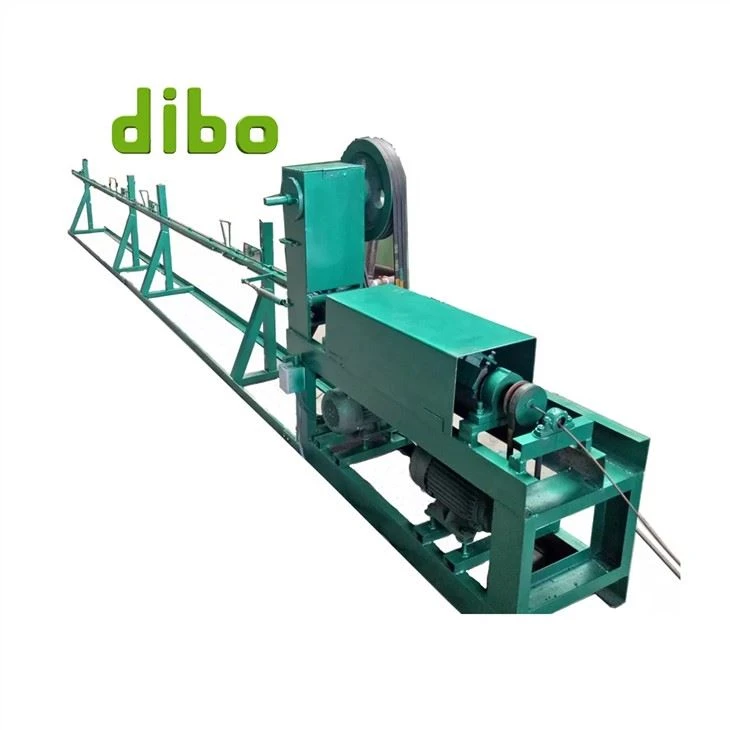

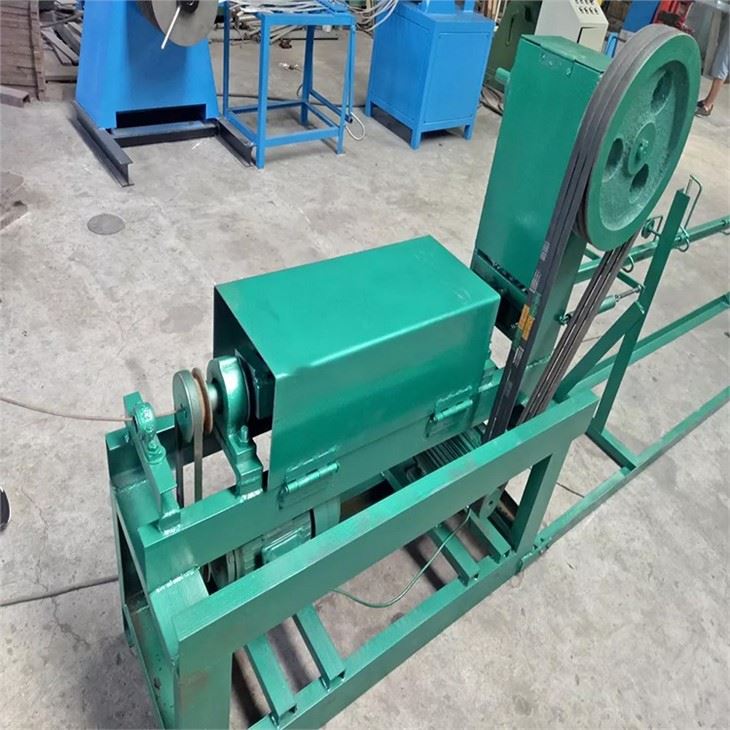

Steel wire bar straightening machine
The wire straightening cutting machine is also called straight wire machine, it is a kind of straightening device. It mainly consists of wire- rod stand, straightening stand, drawing and cutting device, framework support, electric rotation mechanism and electric control cabinet.
Straightening machine is one of the reinforcement machining machinery. Used for straightening and cutting the steel bar with a diameter of less than 14mm. The cutting length can be customized according to customer's requirement. It's suitable for straightening and cutting various kinds of metal wires.
Steel wire bar straightening machine Feature:
1. It consists of the straightening part and the hydraulic cutting part. Use automatic count, by default to close the root number, and automatically stop after work is completed.
2. Have numerical control device, can according to customer's different requirement, number, length, orientation.
3. Straightening speed is fast, cutting error is little
4. the characteristics of reasonable structure, convenient operation and safety.
5. Can straighten, cut stainless steel wire, aluminum wire, cold drawn wire and wire
6. The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
| Model | DB1.5-3.5 | DB2-5 | DB3-6 | DB4-8 | DB4-12 | DB5-12 |
| wire diameter | 1.5-3.5mm | 2 -5mm | 3- 6mm | 4- 8mm | 4 -12mm | 5- 12mm |
| cutting length | 500-2000mm | 500-6000mm | 500-6000mm | 200-6000mm | 200-6000mm | 1000-12000mm |
| cut error +/- | 1mm | 1mm | 1mm | 1mm | 1mm | 1mm |
| speed | 60m/min | 60m/min | 60m/min | 60m/min | 60m/min | 60m/min |
| Voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| cutting motor | 0.75kw | 0.75kw | 0.75kw | 3kw | 4kw | 4kw |
| straight motor | 1.5kw | 1.5kw | 2.2kw | 4kw | 7.5kw | 11kw |
| weight | 130 kg | 150 kg | 180 kg | 650 kg | 1000 kg | 1200 kg |
| overall size | 1.7m*0.4m*0.8m | 1.2m*0.4m*0.9m | 1.2m*0.5m*1.1m | 7.3m*0.6m*1.2m | 8m*0.8m*1.3m | 2.1m*0.7m*1.3m |
