Counterbalanced Floor Crane Parameter

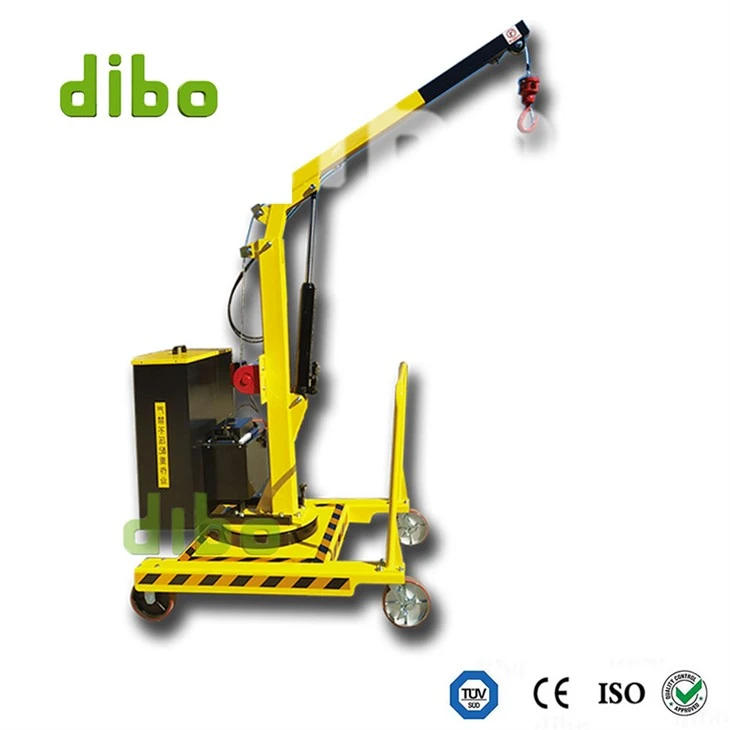

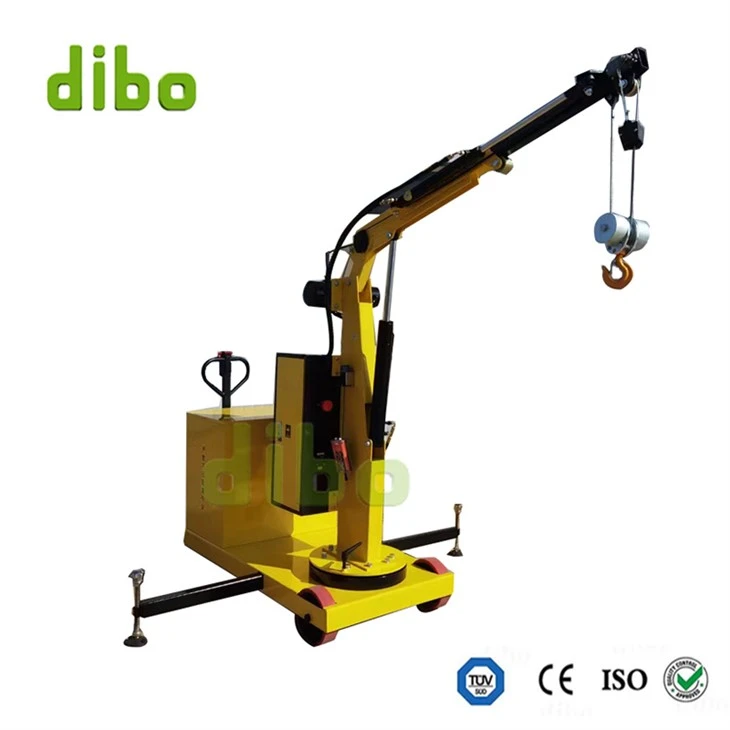

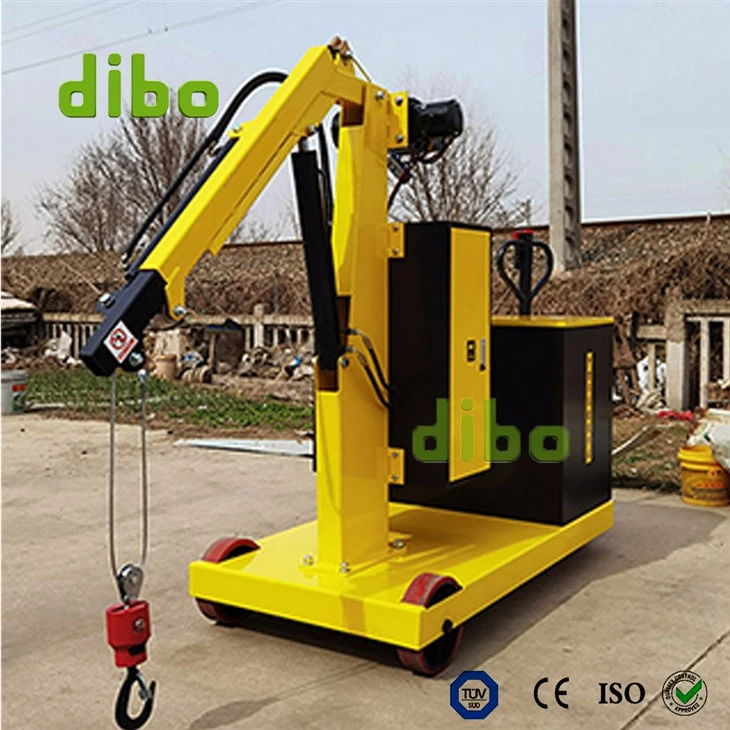

We have cranes that lift entirely electrically: move, rotate the mast, raise and lower the jib. Its design makes it ideal for industrial lifting, with a maximum load capacity of 1000 kg and a jib that can be extended up to 1.9 m. Two models are available, the difference being that the jib and mast are operated by remote control or levers. This workshop crane is very compact, with a width of only 800 mm. Thanks to its extreme maneuverability, it can reach any space. It can be fitted with any type of under-the-hook attachment (vacuum lifting beams, rods, clamps, tippers, permanent magnets and custom solutions), for unlimited applications in a wide range of industries.
| Model | DB-400-BZD | DB-500-B | DB-1000-OBDZ | DB-1000-OB |
| Capacity | 400kg | 500kg | 1000kg | 1000kg |
| Method |
Electric hydraulic Manual walking |
Manual hydraulic Manual walking |
Electric hydraulic Electric walking |
Manual hydraulic Manual walking |
| Rotation function | YES | NO | YES | NO |
| Telescope Lenth | 1.5-1.9m | 1.5-1.9m | 1.1-1.5m | 1.1-1.5m |
One of the key features of this pick and carry crane is that there are no lateral outriggers, therefore this crane grants max mobility with suspended load. The DB crane heavy duty counterbalance crane is the ideal crane for lifting heavy and bulky loads and thanks to its extreme maneuverability it can reach any location where the load has to be picked up, including narrow aisles and tunnels.
Counterbalanced Floor Crane Instruction
Due to the cantilever concept, it is a ready-to-use lifting solution that requires no installation, as it can lift without installing side stabilizers. The crane has a safety system that prevents the crane from being overloaded. The crane is equipped with a safety system that prevents overloading, high-quality driving performance and excellent steering angle automatic charging limiter, integrated charger and anti-fall safety valve, meets all safety standards, emergency stop, differential, buzzer, shut-off valve, etc.
Counterbalanced Floor Crane Details
The crane is fitted with large wheels and castors which enables it to travel over offshore grating with ease and has four lifting points fitted for transportation by platform crane.The Crane is painted to offshore specification and is supplied with load test and NDT certs, a four wire rope sling and work instruction.
·Extra hydraulic cylinder for lateral movement of the front axil. An integral counterweight
·An easy-to-operate hydraulically lifted extending boom
·Folds down for easy transportation
