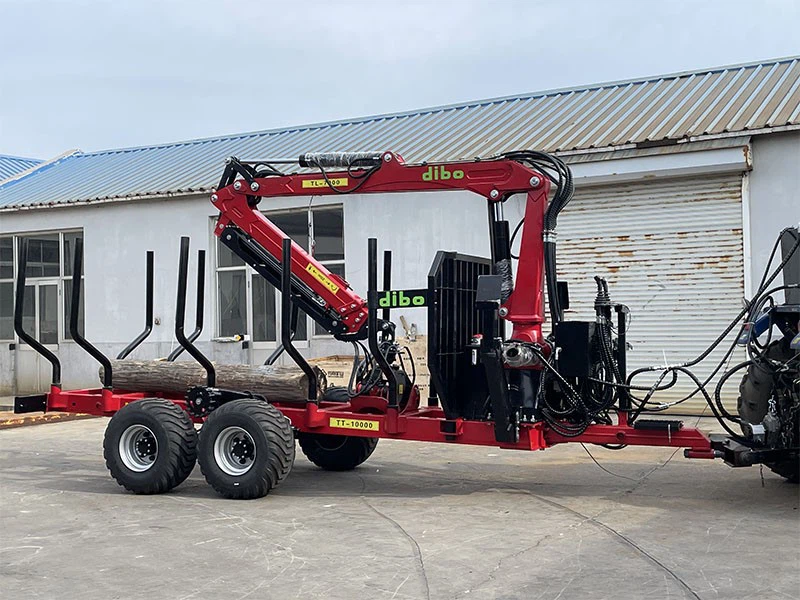

Timber crane with trailer details Timber Crane with grapples remote hydraulic control
forest equipment tractor PTO hydraulic timber loading traile log trailer , wood trailer, log wagon with crane grapple
Comfort hinge between first boom and outer boom for optimum movement pattern. The crane has top-mounted cylinders for first boom and outer boom, hidden hoses, hose wear guard on exposed places as well as impact protection on the fully rotating rotator, which minimises exterior damage to hoses and couplings.
| Model | TC420 | TC470 | TC550L | TC650L | TC700Z | TC760 | TC780Z |
| Max Outreach(M) | 4.2 | 4.7 | 5.5 | 6.5 | 7 | 7.6 | 7.8 |
| Slewing torque(KNm) | 8 | 8 | 10 | 10 | 22 | 24 | 24 |
| Rotation angle(°) | 370° | 370° | 370° | 370° | 370° | 370° | 370° |
| Number of rotating cylinders | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Lifting capacity at 4 m(KG) | 500 | 580 | 680 | 930 | 1650 | 1020 | 1650 |
| Lifting capacity at full reach(KG) | 480 | 510 | 520 | 550 | 860 | 450 | 580 |
| Telescopic arm(M) | none | none | 1 | 1.3 | 2.1 M (two sections ) | 2.5 M (two section s) | 2.5 M (two sections ) |
| Hydraulic oil flow(L/min) | 15-35 | 20-40 | 25-50 | 30-50 | 40-60 | 35-60 | 40-80 |
| Working pressure(mpa) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Rotary motor | GR-10(1T) | GR-10(1T) | GR-30(3T) | GR-30(3T) | GR-30(3T) | GR-30(3T)/GR35F(3.5T) | GR-30(3T)/GR35F(3.5T) |
| Grab | TG16 | TG16 | TG18 | TG18 | TG20 | TG20 | TG26 |
| Total weight( without support, gripping tool and valve),KG | 480 | 505 | 636 | 700 | 1020 | 1020 | 1150 |
| Eight type outriggers weight( KG) | 175 | 175 | 175 | 175 | 195 | 225 | 225 |
| A type outriggers weight( KG) | 160 | 165 | 170 | 170 | 195 | 215 | 215 |
| M type outriggers weight(KG) | 270 | 270 | 270 | 270 | 290 | 310 | 310 |
Details for Timber grab for wood tansportation rotator log grapple machine with crane log splitter long arms wood grabber
1. Hydralic driving
2. More flexible
3. Available with hydraulic rotator
4. Grapple opening 48.1 inches
5. Versatile grab for transporting and loading of tree trunks, branches and debris
6. Timber Grab with stronger boom and rotator and larger grapple
Hydraulic system support leg/outrigger for Forestry log / timber / lumber trailer with hydraulic crane grapple:
more strong and firm due to its ram material, it's pretty important for timber crane work; the oil cylinder is thick and has a hydraulic lock, which will not release pressure after being supported.
Raw material of hydraulic cylinder of timber crane with trailer: the cylinder material is Q345, and the piston rod is electroplated. The material of oil pipe is aslo electroplated, which has good performance fof acide and alkali resistance and anti-corrosion. Suitable for working at sea side . Technolog of paiting: powder coating for (big and small arms, column base, gripper teeth are red, the rest are black), has excelletn of anti-rust characteristics
